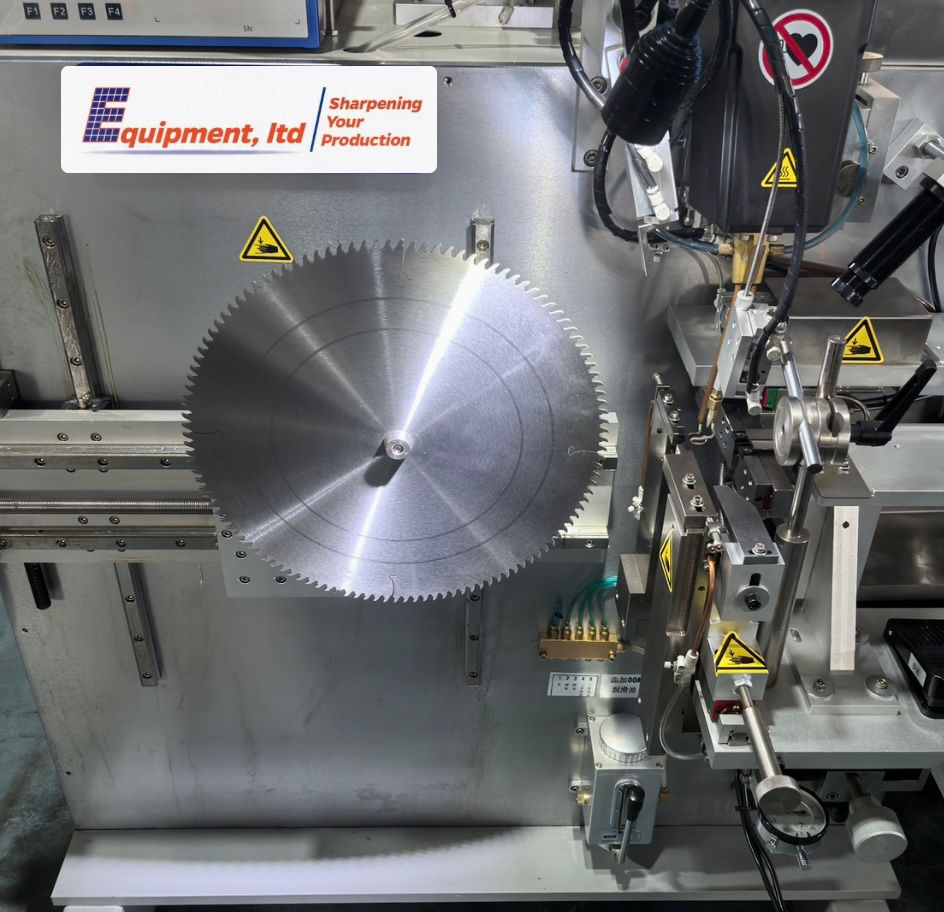

EQZTR 800 Manual Brazing Machine

EQZTR 800 Manual Brazing Machine

The EQZDH 800 offers a cost-effective solution for manually brazing carbide and stellite tipped saw blades.

Specifications:​

  • Saw Diameter: 5" - 32"

  • Hook Angle: up to 30°

  • Blade Thickness: .040" - 375"

  • Tip Length 5,5 to 13,5mm

  • Tip Kerf: 1,5 to 6,0 mm

  • Tip Thickness: 1,5 to 3,5mm

  • Wire Diameter: 0,5 to 0,6mm

  • Strip Width: 1,5 to 6,0mm

  • Generator Power: 8kW

  • Air Pressure: 5CFM@90PSI

  • Power: 220VAC, Single Phase High Frequency Power 6.5kW

  • Water Chiller Power 1.5kW

  • Pre-tinned tip program included

  • Wire feed program included

  • Annealing program included

For more information on the EQZDH 800, please contact us or call 828-328-8104.
